SMITH Semi-electric stacker with a lifting capacity of 1000kg and lifting height of 350cm or 3500mm

The SMITH Semi-electric stacker 1000kg 350cm is a versatile and reliable piece of equipment designed to make lifting and transporting heavy loads easier and more efficient. This semi-electric stacker is capable of lifting up to 1000kg and has a maximum lifting height of 350cm or 3500mm. It is ideal for use in warehouses, factories, and other industrial settings where heavy loads need to be moved quickly and safely. One of the key features of the SMITH Semi-electric stacker is its semi-electric design. This means that it is powered by both electricity and manual labor, making it a more affordable and flexible option than fully electric stackers. The electric motor is used to lift and lower the load, while the operator uses manual force to move the stacker around the workspace. This combination of power sources allows for greater control and precision when lifting and transporting heavy loads.

The SMITH Semi-electric stacker is also designed with safety in mind. It comes equipped with a range of safety features, including an emergency stop button, a safety brake, and a safety guard to protect the operator from falling objects. The stacker also has a low center of gravity, which helps to prevent tipping and ensures that the load remains stable during transport. In addition to its safety features, the SMITH Semi-electric stacker is also designed for ease of use. It has a simple and intuitive control panel that allows the operator to easily adjust the lifting height and control the movement of the stacker. The stacker also has a compact and maneuverable design, making it easy to navigate through narrow aisles and tight spaces.

Another key feature of the SMITH Semi-electric stacker is its durability. It is made from high-quality materials that are designed to withstand the rigors of daily use in industrial settings. The stacker has a sturdy steel frame and a reinforced mast that can handle heavy loads without bending or warping. It also has high-quality wheels that are designed to provide smooth and stable movement, even when carrying heavy loads. Maintenance of the SMITH Semi-electric stacker is also relatively simple. The stacker requires regular inspections and maintenance to ensure that it is operating safely and efficiently. This includes checking the hydraulic oil level, inspecting the wheels and axles, and lubricating all movable parts. The stacker also requires regular charging to ensure that the battery is fully charged and ready for use.

Overall, the SMITH Semi-electric stacker 1000kg 350cm is a versatile and reliable piece of equipment that is ideal for use in a wide range of industrial settings. Its semi-electric design, safety features, ease of use, and durability make it a popular choice for businesses looking to improve their lifting and transporting capabilities. Whether you are moving heavy loads in a warehouse or factory, the SMITH Semi-electric stacker is a reliable and efficient solution that can help you get the job done quickly and safely.

Video of SMITH Semi-electric Stacker

Key Features of SMITH Semi-electric stacker 1000kg 350cm

• Model: SXPN1035
• EU charger
• Max Capacity: 1000kg
• Max Lifting Height: 3500mm
• Operation Type: Semi-electric (Electric lift, Manual push)
• Brand New: Includes battery and charger
• Working time 5-6 hours
• Charging time 7-8 hours
• Battery level indicator
• Load Capacity on Max Height: 500 KG
• Load Centre: 600 mm
• Power Type: Semi Electric. Electric Power to lift; Manual Push to move
• Walk-behind operation no license is required
• Control Panel: Fascia-mounted control panel with raise/lower buttons, emergency stop trigger, battery indicator, and hour-meter
• The in-built EU charger is a single phrase (wall plug) that can be easily changed
• Adjustable Fork: Forged forks with an adjustable width
• Easy service and maintenance
• Lockable wheel

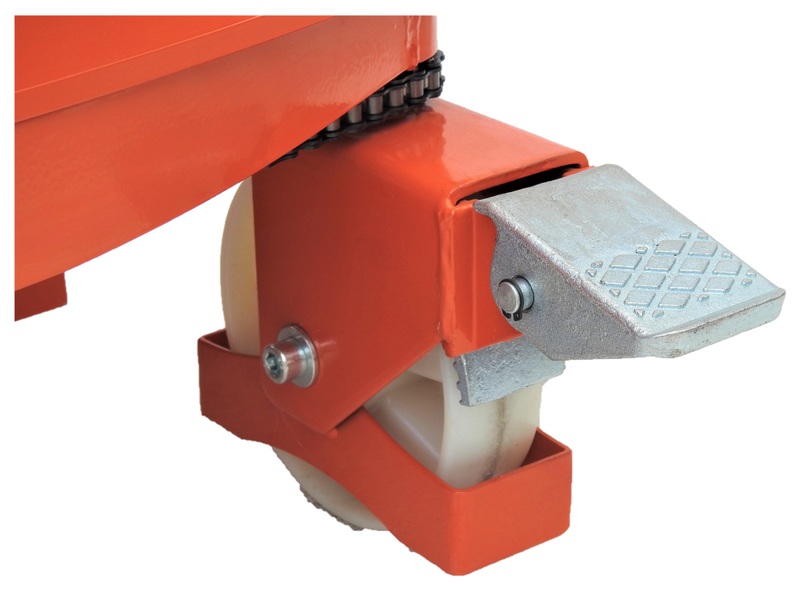

• Wheels: Brake-enabled with 360-degree rotation. Large diameter steered rear wheel for easy movement across any surface
• Electric lift and manual push
• Efficient in factories, warehouses, and logistics centers. Great in narrow passages, floors, and other high-rack warehouses
• Flexible, silent, and environmental
• Warranty
• With electric lift and manual push, the semi-electric pallet stacker is easy to control, and environmental efficiency

Specifications of SMITH Semi-electric stacker 1000kg 350cm

Lifting curve of SMITH Semi-electric stacker 1000kg 350cm

Key Features of SMITH Semi-electric stacker 1000kg 350cm

Semi-Electric Design: The SMITH Semi-electric stacker features a unique semi-electric design, utilizing both electric and manual power for lifting and movement. This design enhances affordability and flexibility compared to fully electric stackers.

Safety First: Equipped with essential safety features, including an emergency stop button, a safety brake, and a safety guard, the stacker ensures the well-being of operators by protecting them from potential hazards such as falling objects. Its low center of gravity prevents tipping and ensures stability during transport.

Ease of Use: The stacker is designed for user-friendly operation, featuring an intuitive control panel that allows operators to easily adjust the lifting height and control the stacker’s movement. Its compact and maneuverable design enables smooth navigation through narrow aisles and tight spaces.

Durability: Built to withstand the demands of daily industrial use, the stacker boasts a sturdy steel frame, a reinforced mast, and high-quality wheels for stability. These features contribute to its durability, allowing it to handle heavy loads without bending or warping.

Simple Maintenance: Maintenance is simplified with regular inspections of hydraulic oil levels, wheel and axle checks, and lubrication of movable parts. The stacker requires regular charging to ensure the battery is fully charged and ready for use.

How does Semi-electric stacker SMITH operates

The SMITH Semi-electric stacker operates through a combination of electric and manual mechanisms, providing a flexible and efficient solution for lifting and transporting heavy loads in industrial environments. Here’s an overview of how it works:

1. Electric Lifting Mechanism:
   • The stacker is equipped with an electric motor that powers the lifting mechanism. This motor is responsible for raising and lowering the forks or platform to adjust the height of the load.
   • The operator controls the electric lifting mechanism using the intuitive control panel, which typically includes raise and lower buttons for precise control over the lifting process.
2. Manual Movement Control:
   • Unlike fully electric stackers, the SMITH Semi-electric stacker incorporates manual movement control. The operator uses manual force to push or pull the stacker to navigate it within the workspace.
   • This manual control provides flexibility in movement and allows the operator to maneuver the stacker through narrow aisles and tight spaces with ease.
3. Hydraulic System:
   • The lifting mechanism is often assisted by a hydraulic system. When the electric motor is activated to lift the load, hydraulic fluid is pressurized to move the hydraulic cylinder, which in turn raises the forks or platform.
   • The hydraulic system ensures a smooth and controlled lifting process, allowing for precise positioning of the load at various heights.
4. Safety Features:
   • The stacker is equipped with safety features to protect the operator and prevent accidents. This typically includes an emergency stop button that instantly halts all electric and hydraulic operations in case of an emergency.
   • A safety brake ensures that the load remains stable during transport, and a safety guard protects the operator from falling objects or other potential hazards.
5. Compact and Maneuverable Design:
   • The stacker is designed to be compact and maneuverable, making it suitable for navigating through confined spaces. This is especially important in warehouses or factories where space is limited.
6. Power Source:
   • The stacker is powered by a rechargeable battery, and a built-in charger facilitates easy charging. Regular charging maintenance is necessary to ensure that the battery is fully charged and ready for use.

In summary, the SMITH Semi-electric stacker combines the efficiency of electric lifting with the flexibility of manual movement. The integration of safety features, hydraulic systems, and a user-friendly control panel makes it a reliable and versatile solution for various material handling tasks in industrial settings.

Step-by-Step Guide to Operating the SMITH Semi-electric Stacker:

1. Initial Inspection:

• Before operation, conduct a visual inspection of the stacker. Check for any visible damage, loose bolts, or worn-out components. Ensure that the wheels, forks, and lifting mechanism are in good condition.

2. Battery Check:

• Ensure that the stacker’s battery is adequately charged. If not, connect the stacker to a power source using the built-in charger. Regularly check and maintain the battery to prolong its life and ensure optimal performance.

3. Start-Up:

• Turn on the stacker using the power switch or key provided. This activates the control panel and electric components.

4. Familiarize Yourself with the Control Panel:

• Get acquainted with the control panel, which typically includes raise and lower buttons, an emergency stop button, and other relevant controls. Refer to the user manual for specific details on your stacker model.

5. Adjust Fork Width (if applicable):

• If the stacker is equipped with adjustable forks, set them to the appropriate width for the load you are handling. This ensures a secure fit and stability during lifting.

6. Approach the Load:

• Position the stacker in front of the load, aligning the forks with the pallet or item to be lifted. Use the manual pushing function to maneuver the stacker into the correct position.

7. Lifting the Load:

• Press the “raise” button on the control panel to activate the electric lifting mechanism. Gradually lift the load to the desired height. Monitor the load and surroundings during the lifting process.

8. Transporting the Load:

• Once the load is lifted to the required height, use the manual pushing function to navigate the stacker to the desired location. Exercise caution when moving, especially in confined spaces or areas with obstacles.

9. Lowering the Load:

• When ready to lower the load, press the “lower” button on the control panel. Lower the load smoothly and steadily, avoiding sudden movements. Ensure that the load is securely positioned before moving.

10. Emergency Stop:

• In case of an emergency or if any unsafe conditions arise, press the emergency stop button immediately. This will halt all electric and hydraulic operations, ensuring the safety of the operator and surrounding personnel.

11. Shut Down:

• Once the operation is complete, turn off the stacker using the power switch or key. Park the stacker in a designated area, and if applicable, connect it to the charger for the next use.

12. Post-Operation Inspection:

• Conduct a post-operation inspection to ensure that the stacker is in good condition. Look for any signs of wear, damage, or issues that may need attention. Report any concerns to maintenance personnel.
